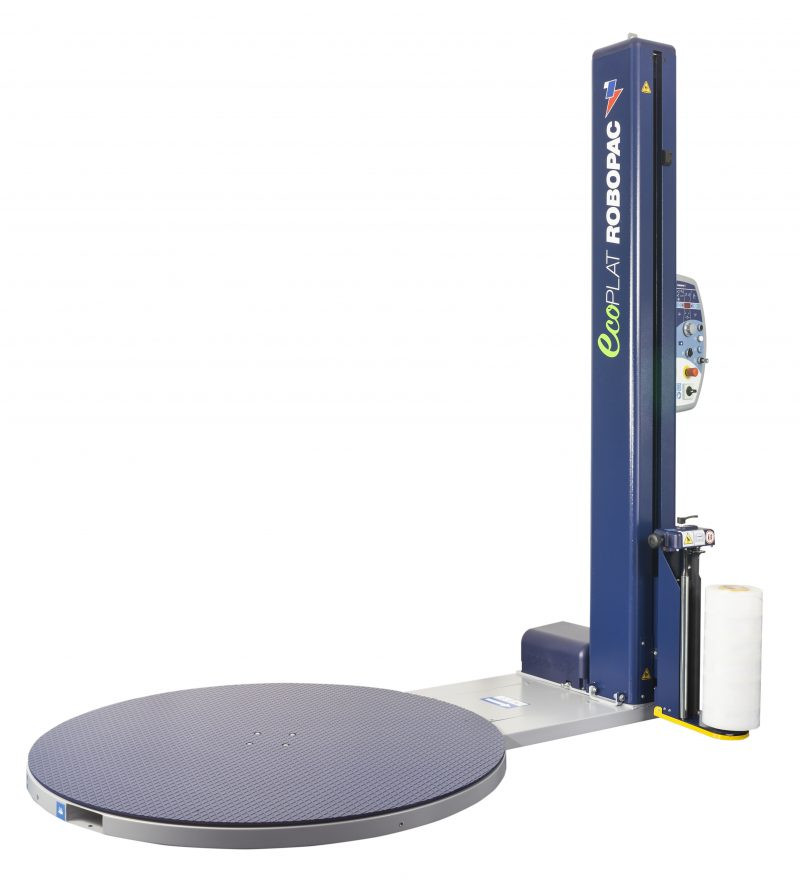

Product Description
The highest performance standard features and value in its class.
• Structural Integrity – 65” turntable with 28 support
bearings.
• Maximum weight: 4400 lbs.
• Standard wrap height: 86” (110” available)
• Unique record-a-wrap feature to record wrap
pattern. Start, stop, jog up, jog down are all
recorded. Up to 20 movements.
• Film tension braking system spreads force out
evenly over a larger surface area resulting in a
much smoother film delivery. No “jerking”
movements that break the film.

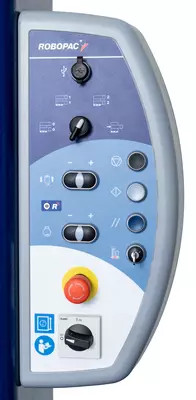

• Control Panel: FRD
Ecoplat Plus Specifications
Performance Criteria
Production Speed:
25 LPH
Turntable Speed:
4 – 10 RPM
Turntable Drive:
1 HP VAC
Load Handling System
Turntable Size:
65” Diameter
Maximum Load Height:
86” (110” available)
Maximum Load Weight:
4400 lbs.
Film Delivery System
• Friction Roller Drive (FRD)
• Pre-stretch – Not available
• Corner Compensation – Core Brake
• Force to Load Control – Electrical
• Standard Film Width – 20” (30” option)
